今天学习下Flutter中state管理的第三方redux.
其中,redux: 3.0.0 flutter_redux: 0.5.3

代码结构如图所示:
sflutter_redux_代码结构

下面是各文件的源码.

main.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
import 'package:flutter/material.dart';
import 'package:flutter_redux/flutter_redux.dart';
import 'package:redux/redux.dart';
import 'package:redux_demo/model/count_state.dart';
import 'package:redux_demo/top_screen.dart';

void main() {
final store =
Store<CountState>(reducer, initialState: CountState.initState());
runApp(new MyApp(store));
}

class MyApp extends StatelessWidget {
final Store<CountState> store;

MyApp(this.store);

@override
Widget build(BuildContext context) {
return StoreProvider<CountState>(
store: store,
child: new MaterialApp(
title: 'Flutter Demo',
theme: new ThemeData(
primarySwatch: Colors.blue,
),
home: TopScreen(),
),
);
}
}

tabbar.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
import 'package:flutter/material.dart';
import 'package:redux_demo/one/one.dart';
import 'package:redux_demo/two/two.dart';

class Tabbar extends StatelessWidget {
@override
Widget build(BuildContext context) {
return new MaterialApp(
debugShowCheckedModeBanner: false, home: new MainPageWidget());
}
}

class MainPageWidget extends StatefulWidget {
@override
State<StatefulWidget> createState() {
return new MainPageState();
}
}

class MainPageState extends State<MainPageWidget> {
int _tabIndex = 0;
var tabImages;
var appBarTitles = ['One', 'Two'];
/*
* 存放二个页面,跟fragmentList一样
*/
var _pageList;

/*
* 根据选择获得对应的normal或是press的icon
*/
Image getTabIcon(int curIndex) {
if (curIndex == _tabIndex) {
return tabImages[curIndex][1];
}
return tabImages[curIndex][0];
}

/*
* 获取bottomTab的颜色和文字
*/
Text getTabTitle(int curIndex) {
if (curIndex == _tabIndex) {
return new Text(appBarTitles[curIndex],
style: new TextStyle(fontSize: 14.0, color: const Color(0xff1296db)));
} else {
return new Text(appBarTitles[curIndex],
style: new TextStyle(fontSize: 14.0, color: const Color(0xff515151)));
}
}

/*
* 根据image路径获取图片
*/
Image getTabImage(path) {
return new Image.asset(path, width: 24.0, height: 24.0);
}

void initData() {
/*
* 初始化选中和未选中的icon
*/
tabImages = [
[
getTabImage('images/tab/one.png'),
getTabImage('images/tab/one_active.png')
],
[
getTabImage('images/tab/two.png'),
getTabImage('images/tab/two_active.png')
],
];
/*
* 子界面
*/
_pageList = [
new One(),
new Two(),
];
}

@override
Widget build(BuildContext context) {
//初始化数据
initData();
return Scaffold(
body: _pageList[_tabIndex],
bottomNavigationBar: new BottomNavigationBar(
items: <BottomNavigationBarItem>[
new BottomNavigationBarItem(
icon: getTabIcon(0), title: getTabTitle(0)),
new BottomNavigationBarItem(
icon: getTabIcon(1), title: getTabTitle(1)),
],
type: BottomNavigationBarType.fixed,
//默认选中首页
currentIndex: _tabIndex,
iconSize: 24.0,
//点击事件
onTap: (index) {
setState(
() {
_tabIndex = index;
},
);
},
),
);
}
}

top_screen.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import 'package:flutter/material.dart';
import 'package:redux_demo/tabbar.dart';

class TopScreen extends StatefulWidget {
@override
_TopScreenState createState() => _TopScreenState();
}

class _TopScreenState extends State<TopScreen> {
@override
Widget build(BuildContext context) {
return Tabbar();
}
}

count_state.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
import 'package:meta/meta.dart';

/*
* State中所有属性都应该是只读的
*/
@immutable
class CountState {
final int _count;
get count => _count;

CountState(this._count);

CountState.initState() : _count = 0;
}

/*
* 定义操作该State的全部Action
* 这里只有增加count一个动作
*/
enum Action { increment }

/*
* reducer会根据传进来的action生成新的CountState
*/
CountState reducer(CountState state, action) {
//匹配Action
if (action == Action.increment) {
return CountState(state.count + 1);
}
return state;
}

one.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import 'package:flutter/material.dart';
import 'package:flutter_redux/flutter_redux.dart';
import 'package:redux_demo/model/count_state.dart';

class One extends StatefulWidget {
@override
_OneState createState() => _OneState();
}

class _OneState extends State<One> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('one Screen'),
),
body: Center(
child: new Column(
mainAxisAlignment: MainAxisAlignment.center,
children: <Widget>[
new Text(
'You have pushed the button this many times:',
),
StoreConnector<CountState,int>(
converter: (store) => store.state.count,
builder: (context, count) {
return Text(
count.toString(),
style: Theme.of(context).textTheme.display1,
);
},
),
],
),
),
floatingActionButton: StoreConnector<CountState,VoidCallback>(
converter: (store) {
return () => store.dispatch(Action.increment);
},
builder: (context, callback) {
return FloatingActionButton(
onPressed: callback,
child: Icon(Icons.add),
);
},
),
);
}
}

two.dart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import 'package:flutter/material.dart';
import 'package:flutter_redux/flutter_redux.dart';
import 'package:redux_demo/model/count_state.dart';

class Two extends StatefulWidget {
@override
_TwoState createState() => _TwoState();
}

class _TwoState extends State<Two> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('two Screen'),
),
body: Center(
child: StoreConnector<CountState, int>(
converter: (store) => store.state.count,
builder: (context, count) {
return Text(
count.toString(),
style: Theme.of(context).textTheme.display1,
);
},
),
),
);
}
}

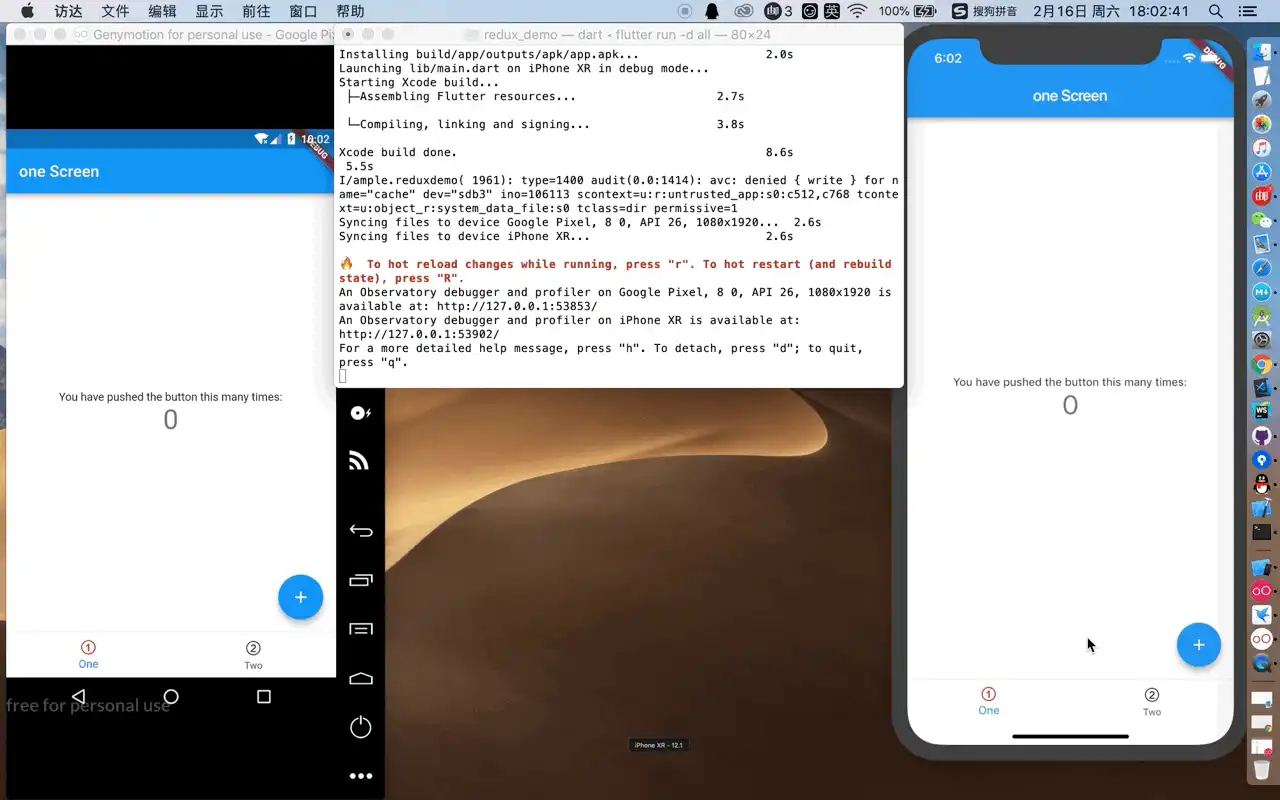

效果图:
flutter_redux_result
