Flutter~scoped_model学习

今天学习下Flutter中state管理的第三方scoped_model.
其中,scoped_model: 1.0.1

代码结构如图所示:

下面是各文件的源码.

main.dart

import 'package:flutter/material.dart';
import 'package:scoped_model_demo/model/main_model.dart';
import 'package:scoped_model/scoped_model.dart';
import 'top_screen.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
    //创建顶层状态
  MainModel countModel = MainModel();
  // This widget is the root of your application.

  @override
  Widget build(BuildContext context) {
    return ScopedModel<MainModel>(
      model: countModel,
      child: new MaterialApp(
        title: 'Flutter Demo',
        theme: new ThemeData(
          primarySwatch: Colors.blue,
        ),
        home: TopScreen(),
      ),
    );
  }
}

tabbar.dart

import 'package:flutter/material.dart';
import 'One/one.dart';
import 'Two/two.dart';

class Tabbar extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return new MaterialApp(
        debugShowCheckedModeBanner: false, home: new MainPageWidget());
  }
}

class MainPageWidget extends StatefulWidget {
  @override
  State<StatefulWidget> createState() {
    return new MainPageState();
  }
}

class MainPageState extends State<MainPageWidget> {
  int _tabIndex = 0;
  var tabImages;
  var appBarTitles = ['One', 'Two'];
  /*
   * 存放二个页面，跟fragmentList一样
   */
  var _pageList;

  /*
   * 根据选择获得对应的normal或是press的icon
   */
  Image getTabIcon(int curIndex) {
    if (curIndex == _tabIndex) {
      return tabImages[curIndex][1];
    }
    return tabImages[curIndex][0];
  }
  /*
   * 获取bottomTab的颜色和文字
   */
  Text getTabTitle(int curIndex) {
    if (curIndex == _tabIndex) {
      return new Text(appBarTitles[curIndex],
          style: new TextStyle(fontSize: 14.0, color: const Color(0xff1296db)));
    } else {
      return new Text(appBarTitles[curIndex],
          style: new TextStyle(fontSize: 14.0, color: const Color(0xff515151)));
    }
  }
  /*
   * 根据image路径获取图片
   */
  Image getTabImage(path) {
    return new Image.asset(path, width: 24.0, height: 24.0);
  }


  void initData() {
    /*
     * 初始化选中和未选中的icon
     */
    tabImages = [
      [getTabImage('images/tab/one.png'), getTabImage('images/tab/one_active.png')],
      [getTabImage('images/tab/two.png'), getTabImage('images/tab/two_active.png')],
    ];
    /*
     * 子界面
     */
    _pageList = [
      new One(),
      new Two(),
    ];
  }

  @override
  Widget build(BuildContext context) {
    //初始化数据
    initData();
    return Scaffold(
        body: _pageList[_tabIndex],
        bottomNavigationBar: new BottomNavigationBar(
          items: <BottomNavigationBarItem>[
            new BottomNavigationBarItem(
                icon: getTabIcon(0), title: getTabTitle(0)),
            new BottomNavigationBarItem(
                icon: getTabIcon(1), title: getTabTitle(1)),
          ],
          type: BottomNavigationBarType.fixed,
          //默认选中首页
          currentIndex: _tabIndex,
          iconSize: 24.0,
          //点击事件
          onTap: (index) {
            setState(() {
              _tabIndex = index;
            });
          },
        ));
  }
}

top_screen.dart

import 'package:flutter/material.dart';
import 'package:scoped_model_demo/model/main_model.dart';
import 'package:scoped_model/scoped_model.dart';
import 'tabbar.dart';

class TopScreen extends StatefulWidget {
  @override
  _TopScreenState createState() => _TopScreenState();
}

class _TopScreenState extends State<TopScreen> {
  //静态获取model用法实例
  Model getModel(BuildContext context) {
    //直接使用of
    final countModel = ScopedModel.of<MainModel>(context);
    //使用CountModel中重写的of
    final countModel2 = MainModel().of(context);

    countModel.increment();
    countModel2.increment();
    return countModel;
    //    return countMode2;
  }


  @override
  Widget build(BuildContext context) {
    return ScopedModelDescendant<MainModel>(
      builder: (context,child,model){
        return Tabbar();
      },
    );
  }
}

main_model.dart

import 'package:scoped_model/scoped_model.dart';

class MainModel extends Model{
  int _count = 0;
  get count => _count;

  void increment(){
    _count++;
    notifyListeners();
  }

  MainModel of(context) =>
      ScopedModel.of<MainModel>(context);
}

one.dart

import 'package:flutter/material.dart';
import 'package:scoped_model_demo/model/main_model.dart';
import 'package:scoped_model/scoped_model.dart';

class One extends StatefulWidget {
  @override
  _OneState createState() => _OneState();
}

class _OneState extends State<One> {
  //静态获取model用法实例
  Model getModel(BuildContext context) {
    //直接使用of
    final countModel = ScopedModel.of<MainModel>(context);
    //使用CountModel中重写的of
    final countModel2 = MainModel().of(context);

    countModel.increment();
    countModel2.increment();
    return countModel;
    //    return countMode2;
  }

  @override
  Widget build(BuildContext context) {
    return ScopedModelDescendant<MainModel>(
      builder: (context, child, model) {
        return Scaffold(
          appBar: AppBar(
            title: Text('One One'),
          ),
          body: Center(
            child: Column(
              children: <Widget>[
                Text(
                  model.count.toString(),
                  style: TextStyle(fontSize: 22.0),
                ),
                RaisedButton(
                  child: Text('加1'),
                  onPressed: () => model.increment(),
                ),
              ],
            ),
          ),
        );
      },
    );
  }
}

two.dart

import 'package:flutter/material.dart';
import 'package:scoped_model_demo/model/main_model.dart';
import 'package:scoped_model/scoped_model.dart';

class Two extends StatefulWidget {
  @override
  _TwoState createState() => _TwoState();
}

class _TwoState extends State<Two> {
   //静态获取model用法实例
  Model getModel(BuildContext context){
    //直接使用of
    final countModel = ScopedModel.of<MainModel>(context);
    //使用CountModel中重写的of
    final countModel2 = MainModel().of(context);

    countModel.increment();
    countModel2.increment();
    return countModel;
    //    return countMode2;
  }

  @override
  Widget build(BuildContext context) {
    return ScopedModelDescendant<MainModel>(
      builder: (context,child,model){
        return Scaffold(
          appBar: AppBar(
            title: Text('Two Screen'),
          ),
          body: Center(
            child: Text(
              model.count.toString(),
              style: TextStyle(fontSize: 48.0),
            ),
          )
        );
      },
    );
  }
}

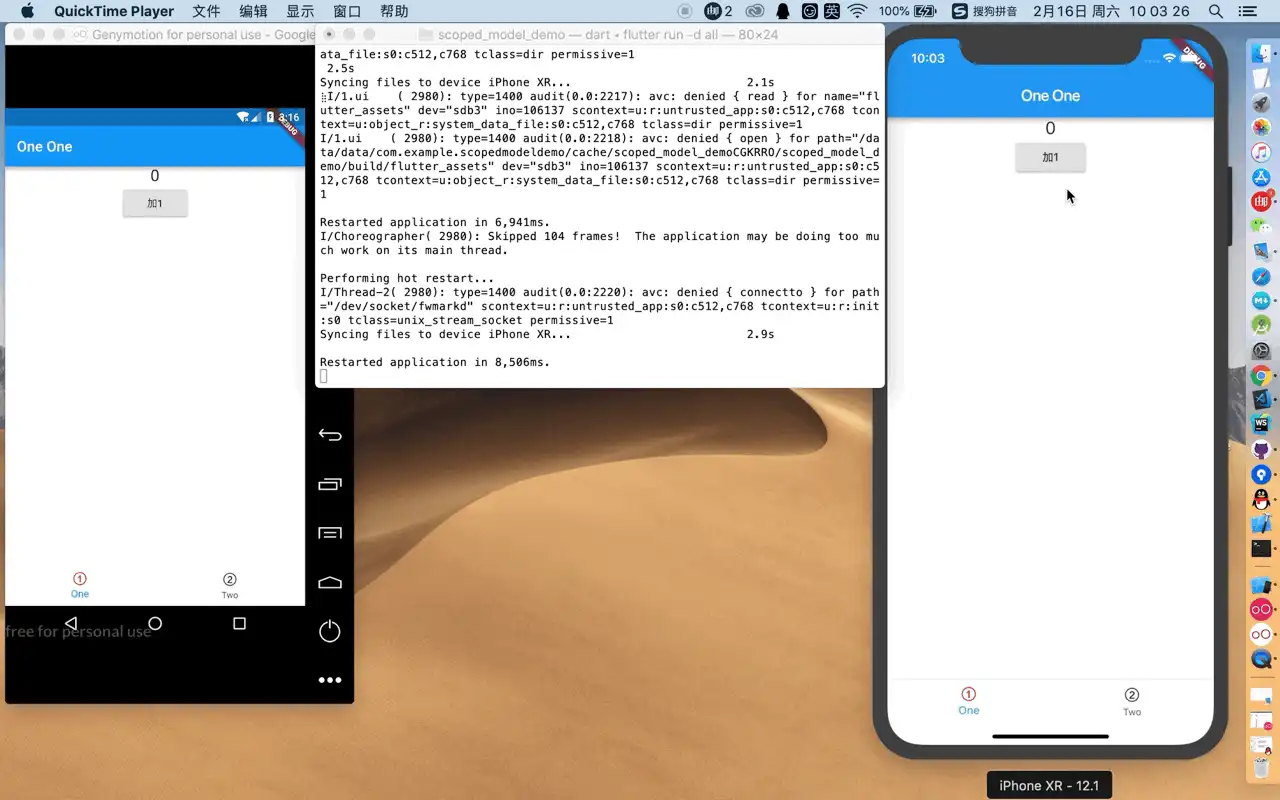

效果图:

源码
